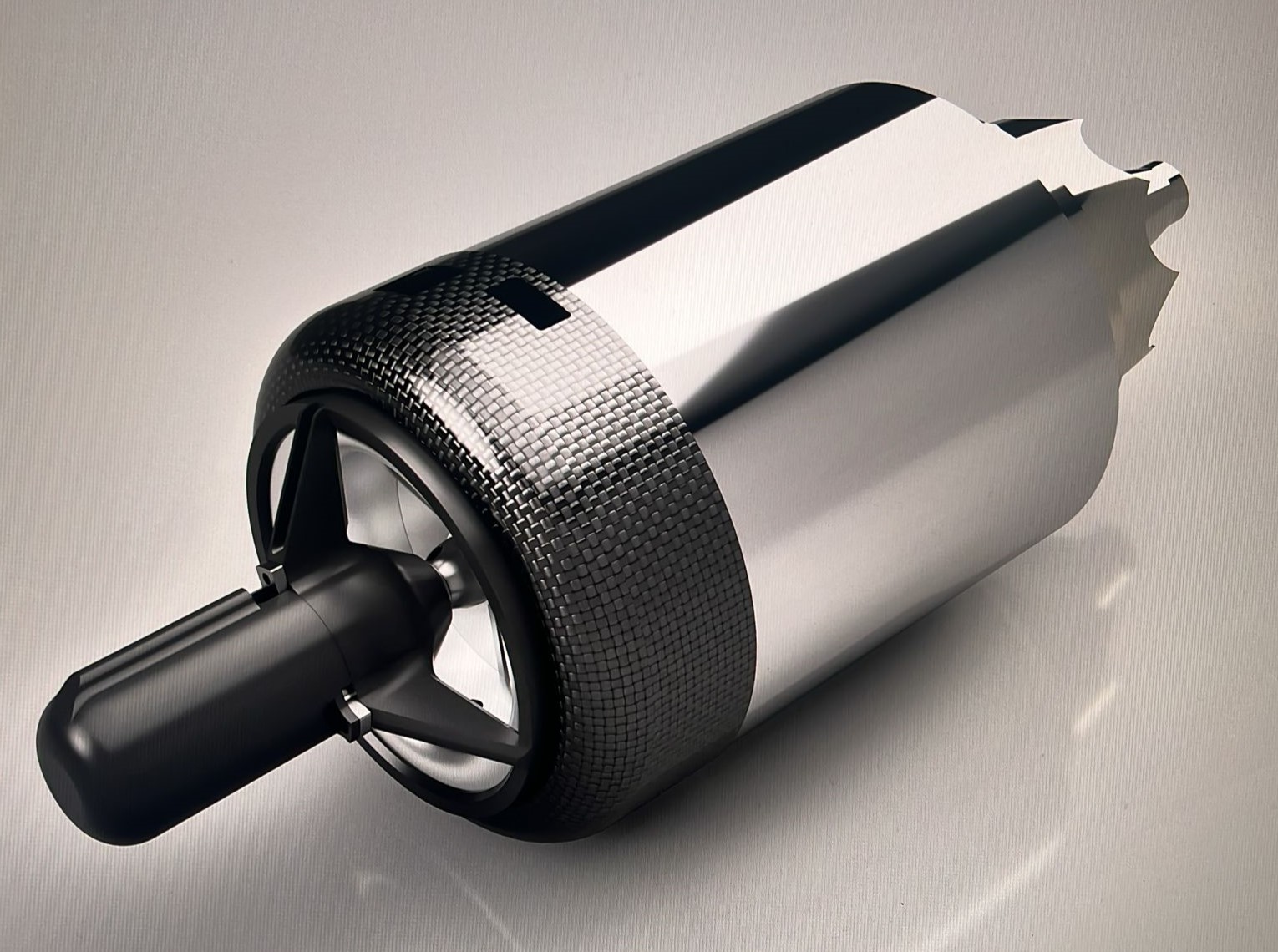

The engine is delivered with all the accessories required for operation. This includes: electric starter, ECU, fuel pump, fuel shut-off valve, felt clunk (for the hopper tank), brass clunk (for the main tank), mounting clamp, and intake protection. Additionally, this model comes equipped with special options, including a telemetry interface, increased performance output, and a bleed air function for external applications. These features significantly expand the engine's range of applications. Batteries, RC system, and fuel/oil are not included in the set.
Length | 330mm |
Diameter | 120mm |
Weight | 1860g (2130g incl. ECU) |
Thrust @ 1900ft MSL, 940-950 hPa, 15-20°C | 13-245 N |
Operating speed (RPM) | 35,000 - 115,000 rpm |
Acceleration time | approx. 5s |
Compression rate | 3,7 |
Exhaust temperature | 500-685 °C |
Fuel | Kerosene/diesel/petroleum |
Fuel consumption | approx. 890 ml/min |
Lubrication | 5% oil in fuel |
Maintenance interval | 25 hours of use |
