Frank Turbine FT250 | Professional Engine Systems

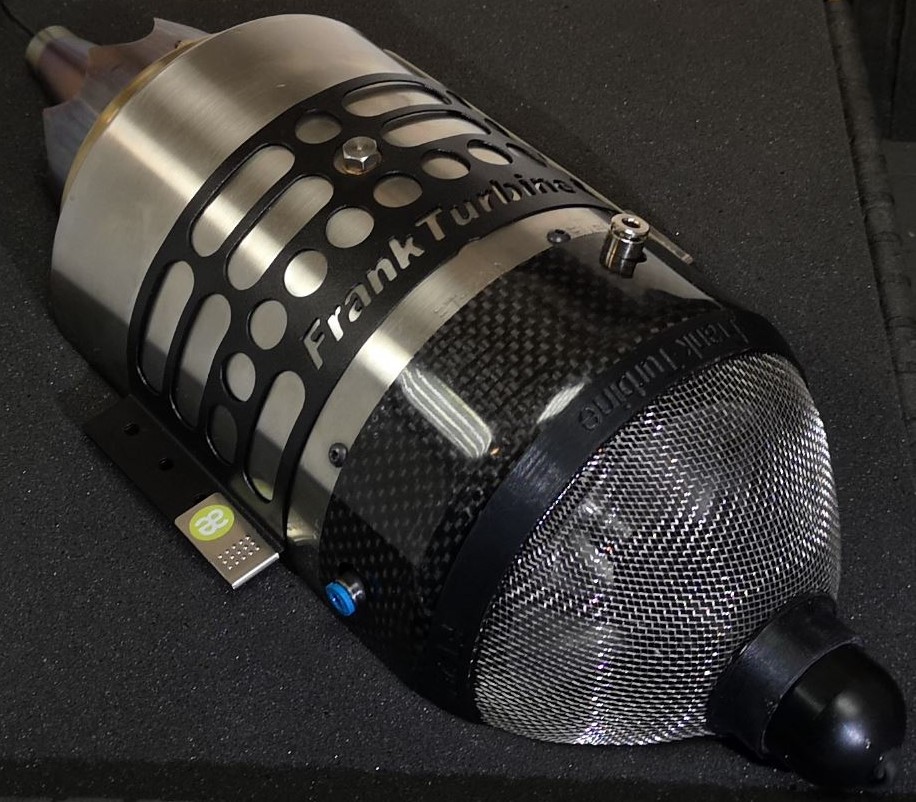

The FT250 achieves a thrust of up to 25 kg and is very compact. Due to the V2A stainless steel housing and the carbon parts, this turbine is also very light.

3.850,- € per piece*

Description and Data

The engine is supplied including the accessories required for operation. This includes: Electric starter, ECU ProJET Hornet III, fuel pump, fuel shut-off valve, felt pendulum (for hopper tank) and brass pendulum (for main tank), mounting clamp, and intake guard. Batteries, RC system and fuel/oil are not included in the set. The variant with a brushless pump is available in the order form for an additional charge of €150.

Length	330mm
Diameter	120mm
Weight	1860g (2130g incl. ECU)
Thrust @ 1900ft MSL, 940-950 hPa, 15-20°C	13-245 N
Operating speed (RPM)	35,000 - 115,000 rpm
Acceleration time	approx. 5s
Compression rate	3,7
Exhaust temperature	500-685 °C
Fuel	Kerosene/diesel/petroleum
Fuel consumption	approx. 890 ml/min
Lubrication	5% oil in fuel
Maintenance interval	25 hours of use

*The price includes VAT and is without shipping. The shipping costs are calculated individually for your request/order.
